| CHIPSET |
INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 |
| MEMORY |
2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 4800+ MHz |
| • 1DPC 2R Max speed up to 4600+ MHz |
|
| Supports Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Supports Intel® Extreme Memory Profile (XMP) |
| AUDIO |
Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| STORAGE |
1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| LAN |
Realtek® RTL8111H Gigabit LAN |
| ONBOARD GRAPHICS |
1x HDMI™ |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* |
| 1x VGA |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT |
1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 2x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| INTERNAL IO |
1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 2x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 2x USB 2.0 ports |
| 1x USB 5Gbps Type A ports |
| LED FEATURE |
4x EZ Debug LED |

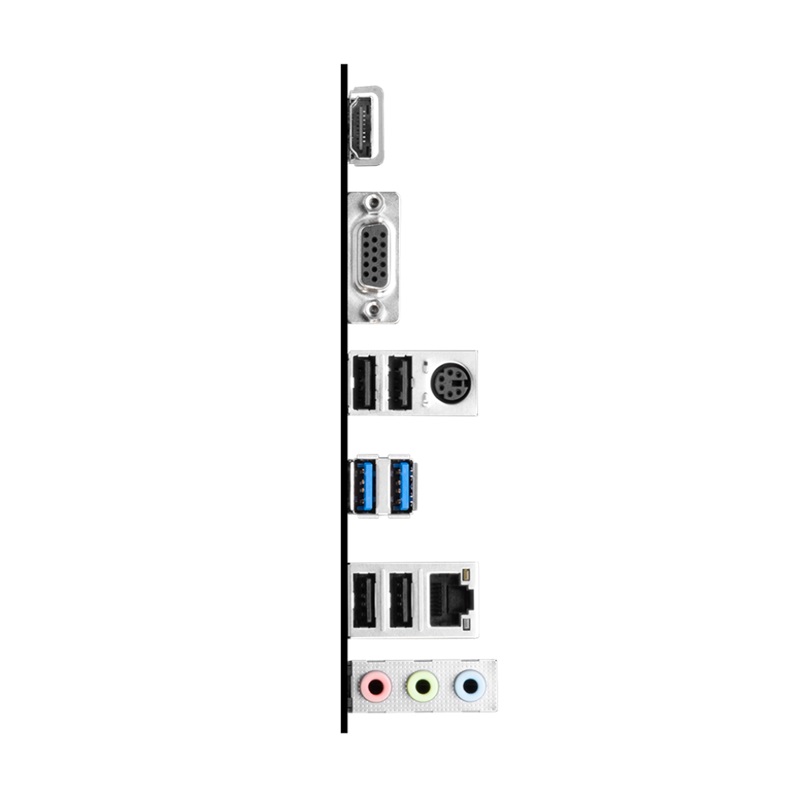

| BACK PANEL PORTS |
HDMI™ |
| VGA |
| Keyboard / Mouse |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| LAN port |
| Audio Connectors |
| USB 2.0 |
| USB 2.0 |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
mATX |
| 200mmx236.16mm |
