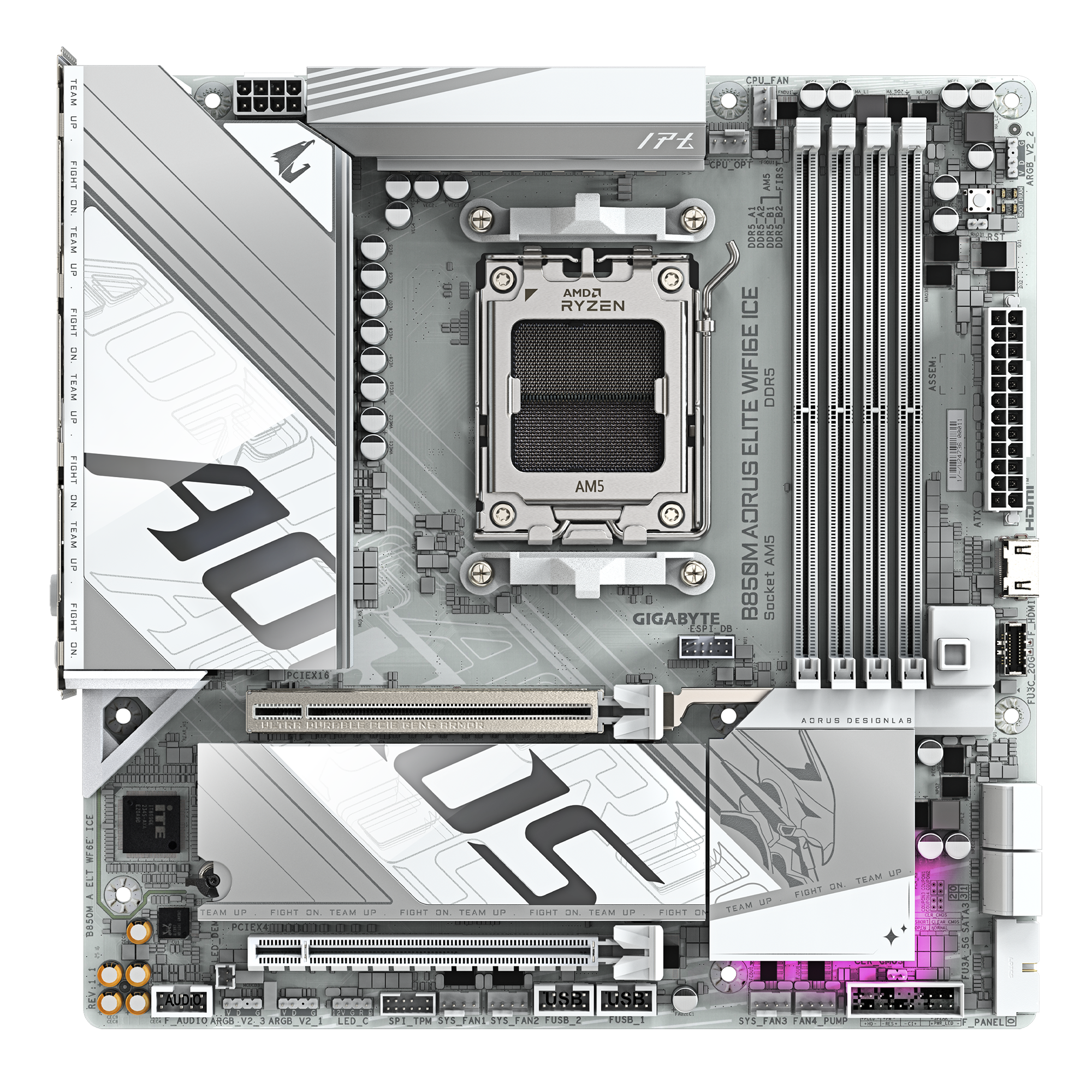

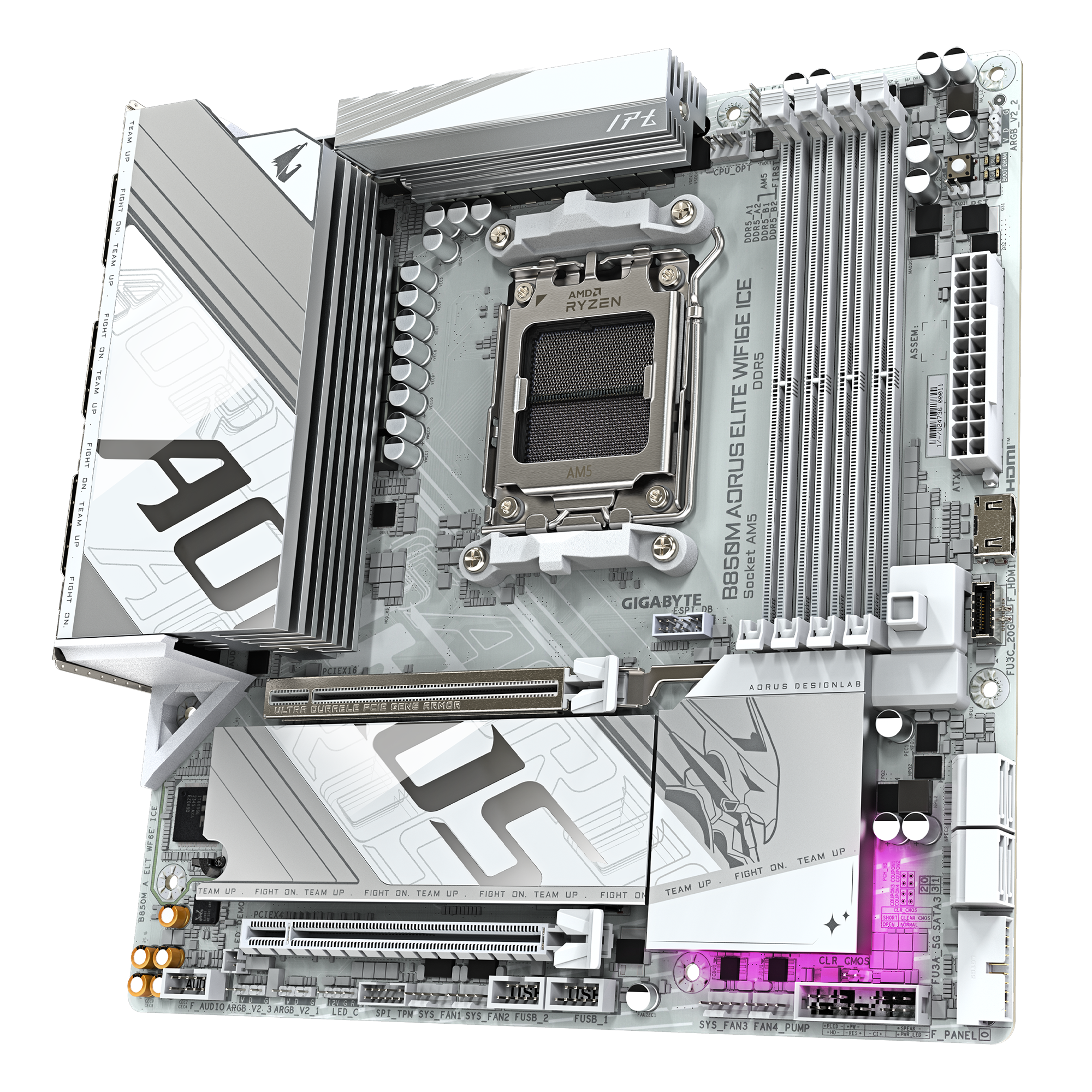

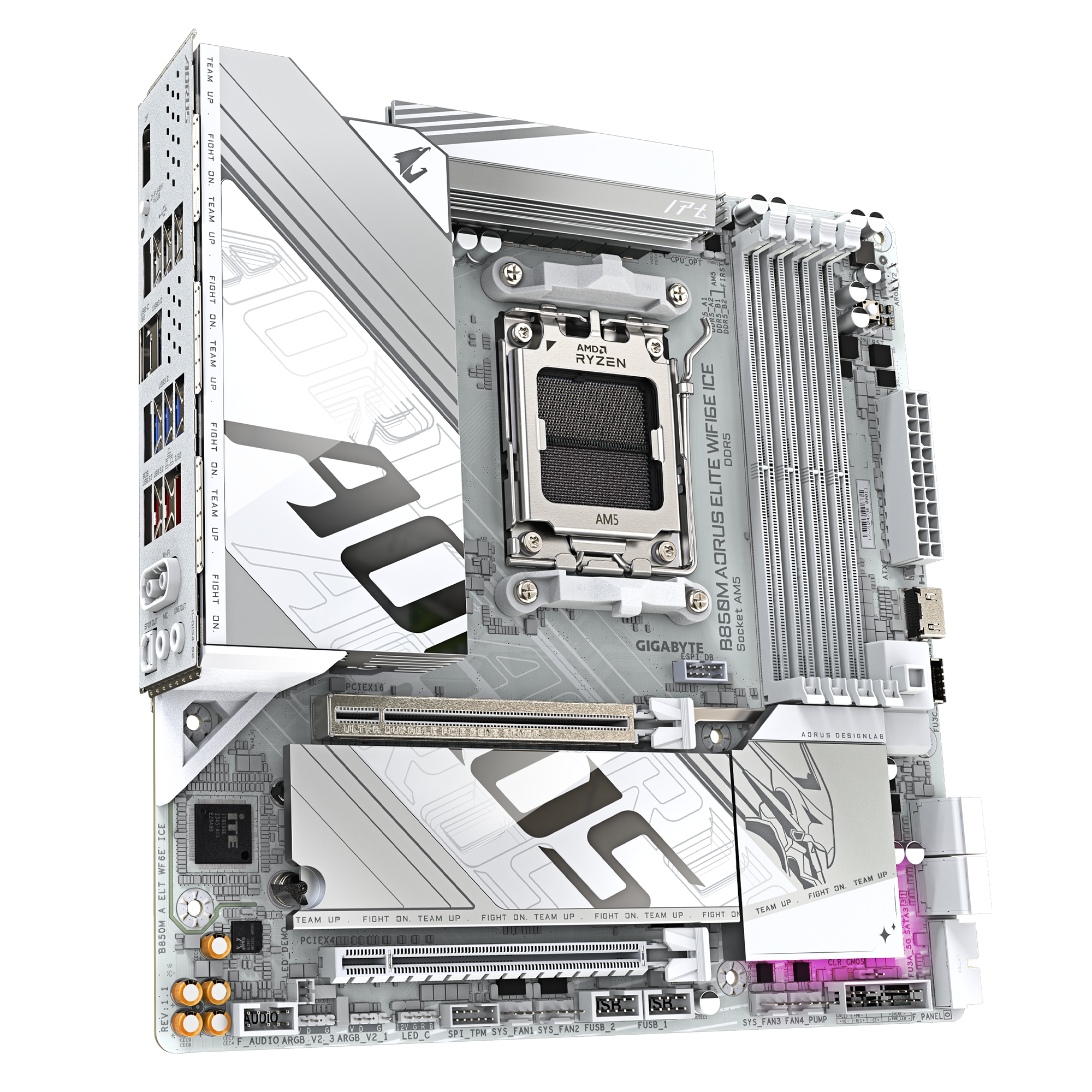

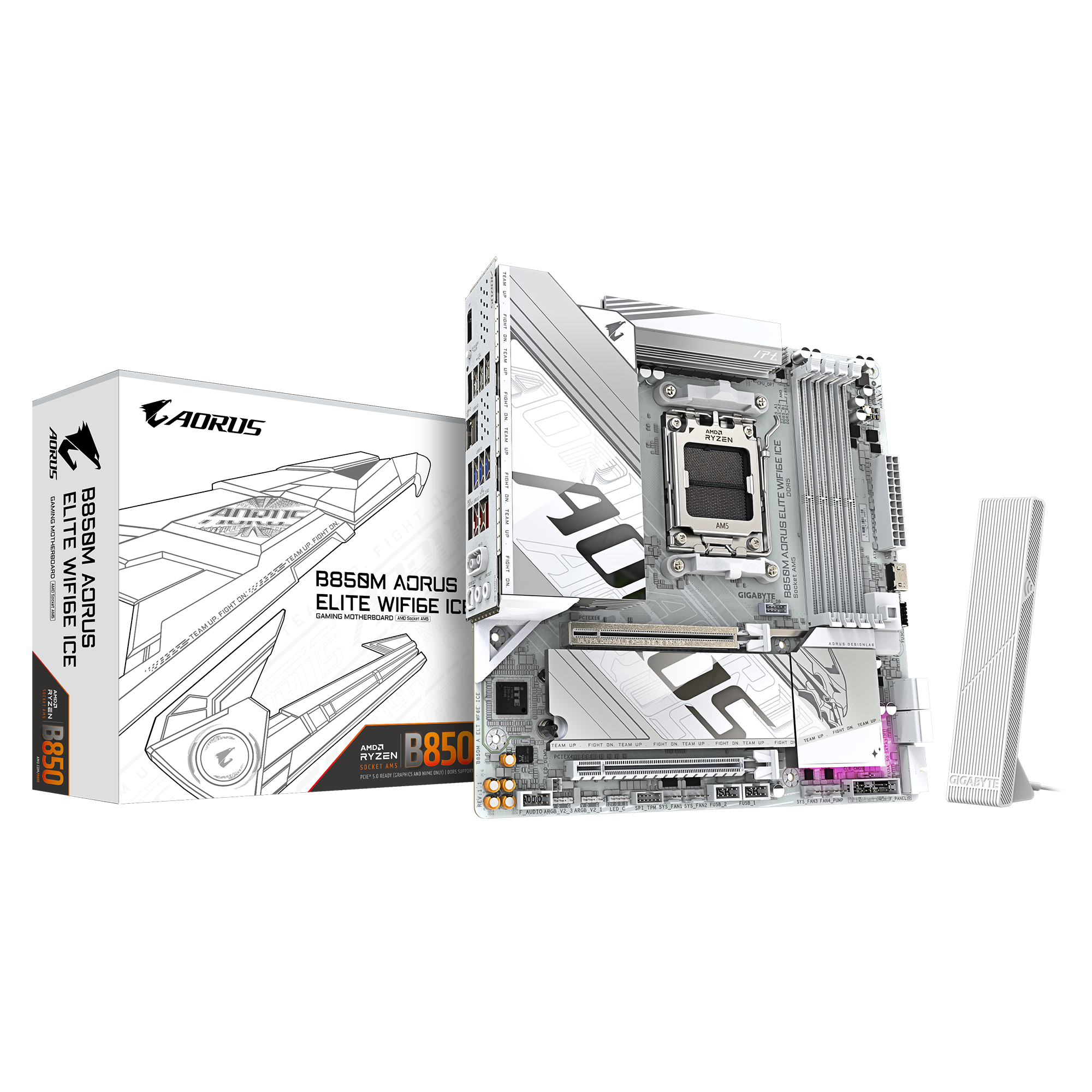

Gigabyte B850M AORUS ELITE WIFI6E ICE AMD AM5 Micro‑ATX Motherboard (GA‑B850M‑AORUS‑ELITE‑WIFI6E‑ICE)

The Gigabyte B850M AORUS ELITE WIFI6E ICE AMD AM5 Micro‑ATX motherboard is built for gamers, creators, and PC enthusiasts who want premium features, advanced connectivity, and reliable performance in a compact form factor. Designed for AMD’s latest AM5 socket processors, it supports DDR5 memory, PCIe 5.0 expansion, and next‑generation storage solutions. With integrated Wi‑Fi 6E, high‑speed networking, and Gigabyte’s Ultra Durable ICE engineering, this board ensures stability, efficiency, and long‑term durability for gaming and productivity.

As part of the AORUS ELITE ICE series, the B850M combines factory‑tuned performance with enhanced cooling, reinforced design, and a sleek ICE aesthetic, making it an excellent choice for builders who want both performance and style.

🌟 Key Features

• AMD AM5 Socket Support (Ryzen 7000 Series CPUs)
• Compact Micro‑ATX Form Factor for versatile builds
• Dual DDR5 DIMM Slots with up to 128GB support
• PCIe 5.0 x16 Expansion Slot for next‑gen GPUs
• Additional PCIe 4.0 slots for expansion cards
• Dual M.2 NVMe PCIe 4.0 Storage Support
• 4× SATA 6Gb/s Ports for traditional drives
• USB 3.2 Gen2 Type‑C + multiple USB 3.2 Gen1/USB 2.0 ports
• HDMI 2.1 and DisplayPort 1.4 Outputs
• Integrated Wi‑Fi 6E + Gigabit LAN Networking
• Smart Fan 6 Cooling Technology
• Reinforced PCIe Slot + Ultra Durable ICE Design
• Premium AORUS ELITE ICE Series Reliability

🔧 Technical Specifications

• CPU Support: AMD AM5 socket (Ryzen 7000 Series CPUs)
• Form Factor: Micro‑ATX (244 × 244 mm)
• Memory: 2× DDR5 DIMM slots, dual‑channel architecture, up to 128GB, support for high‑speed DDR5 modules with XMP profiles
• Expansion Slots:
  • 1× PCIe 5.0 x16 slot (graphics card)
  • 1× PCIe 4.0 x16 slot (wired as x4)
  • 1× PCIe 4.0 x1 slot
• Storage:
  • 2× M.2 slots (PCIe 4.0 NVMe SSD support)
  • 4× SATA 6Gb/s ports
• Graphics Outputs:
  • 1× HDMI 2.1
  • 1× DisplayPort 1.4
• USB Connectivity:
  • Rear I/O: 1× USB 3.2 Gen2 Type‑C, 2× USB 3.2 Gen1 Type‑A, 4× USB 2.0
  • Internal headers: USB 3.2 Gen1, USB 2.0
• Networking:
  • Integrated Wi‑Fi 6E (802.11ax)
  • Gigabit LAN (Realtek controller)
• Audio: High‑definition audio with Realtek codec, support for 7.1‑channel output
• Cooling & Design:
  • Hybrid fan headers with Smart Fan 6 technology
  • Reinforced PCIe slot for heavy GPUs
  • Ultra Durable ICE components with solid capacitors
  • Integrated I/O shield for easier installation
• Power Connectors: 24‑pin ATX main power, 8‑pin CPU power
• Dimensions: Micro‑ATX standard (244 × 244 mm)

The Gigabyte B850M AORUS ELITE WIFI6E ICE AMD AM5 Micro‑ATX (GA‑B850M‑AORUS‑ELITE‑WIFI6E‑ICE) delivers modern connectivity, premium features, and durable ICE engineering, making it an excellent choice for builders seeking a compact yet powerful AM5 motherboard solution with a stylish AORUS ELITE ICE design.
