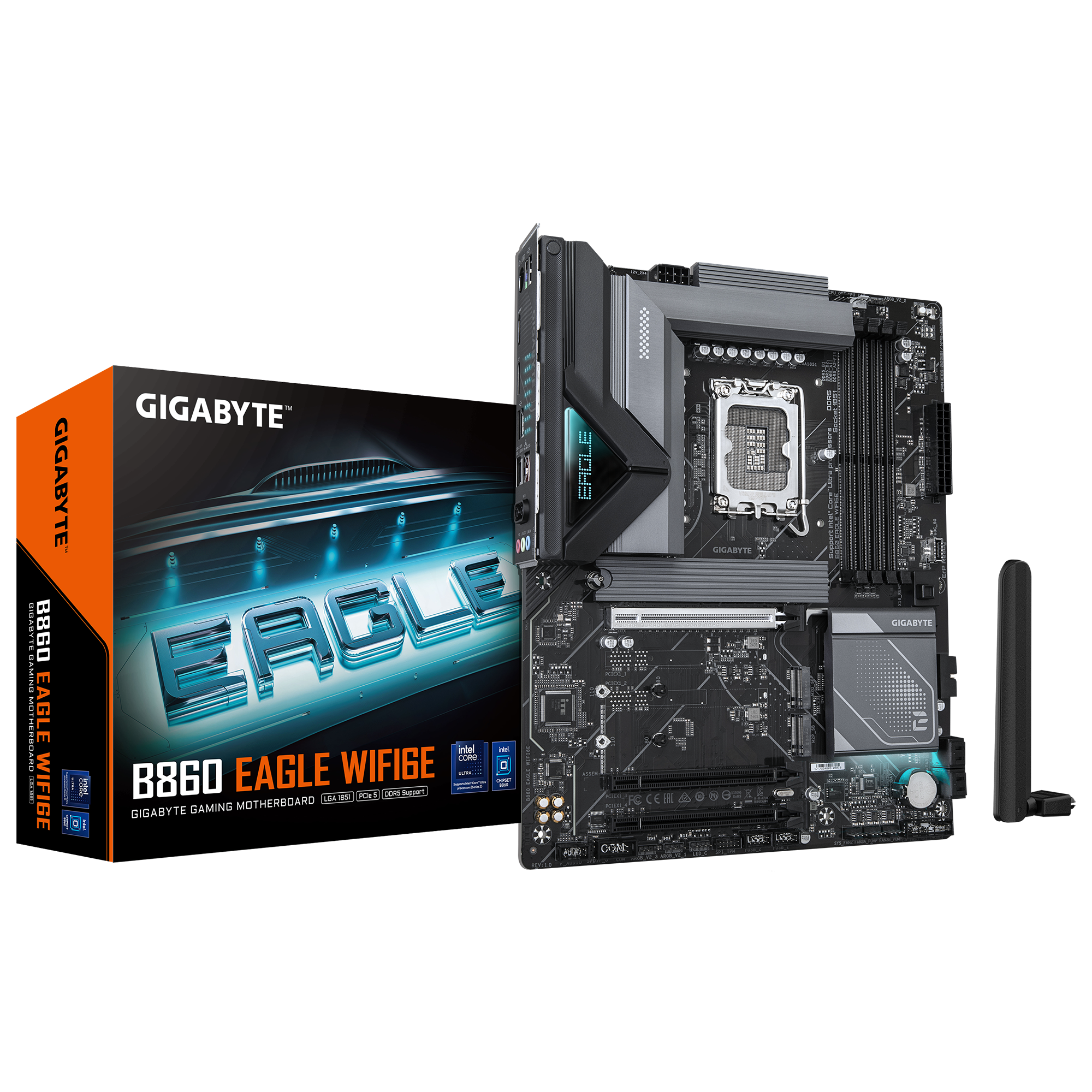

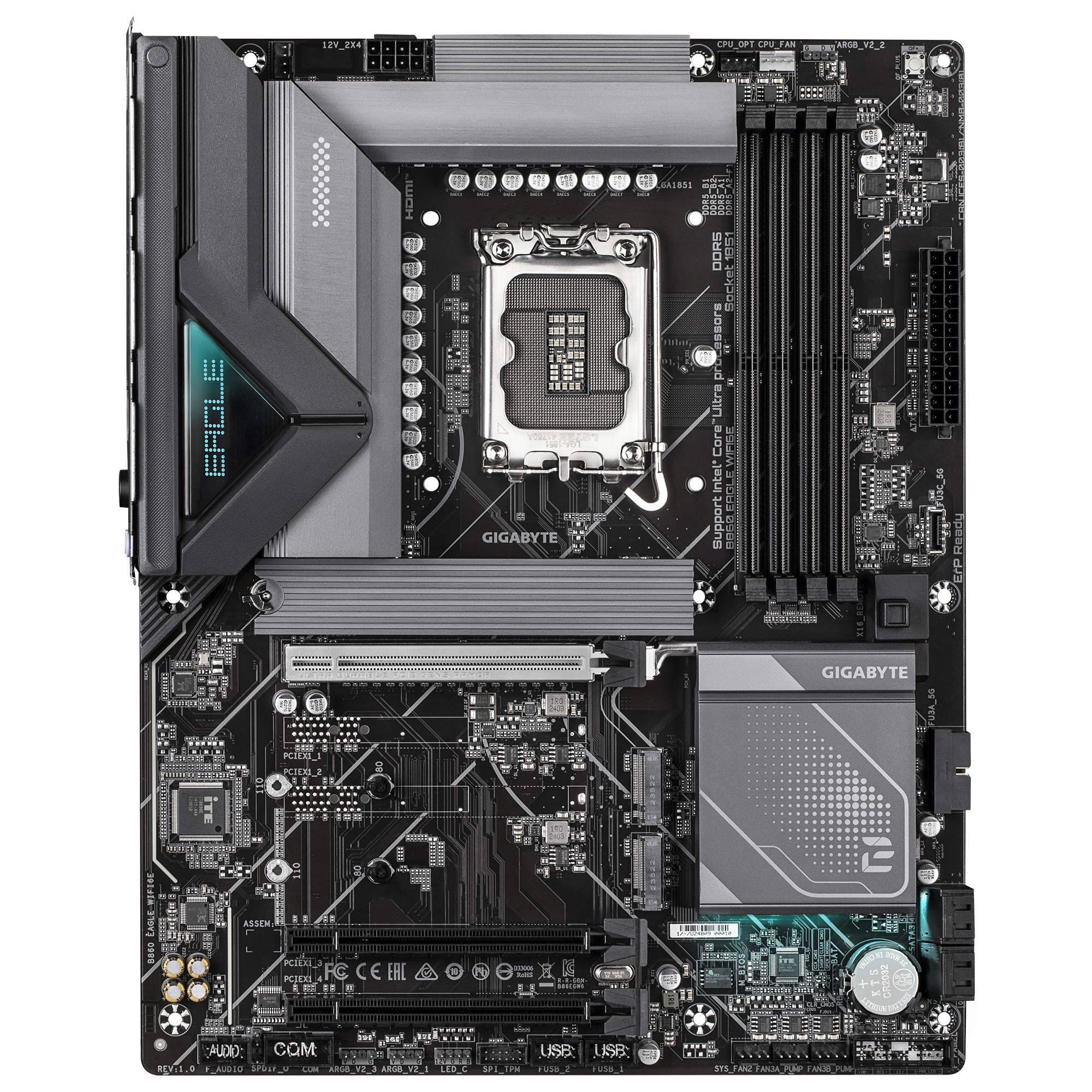

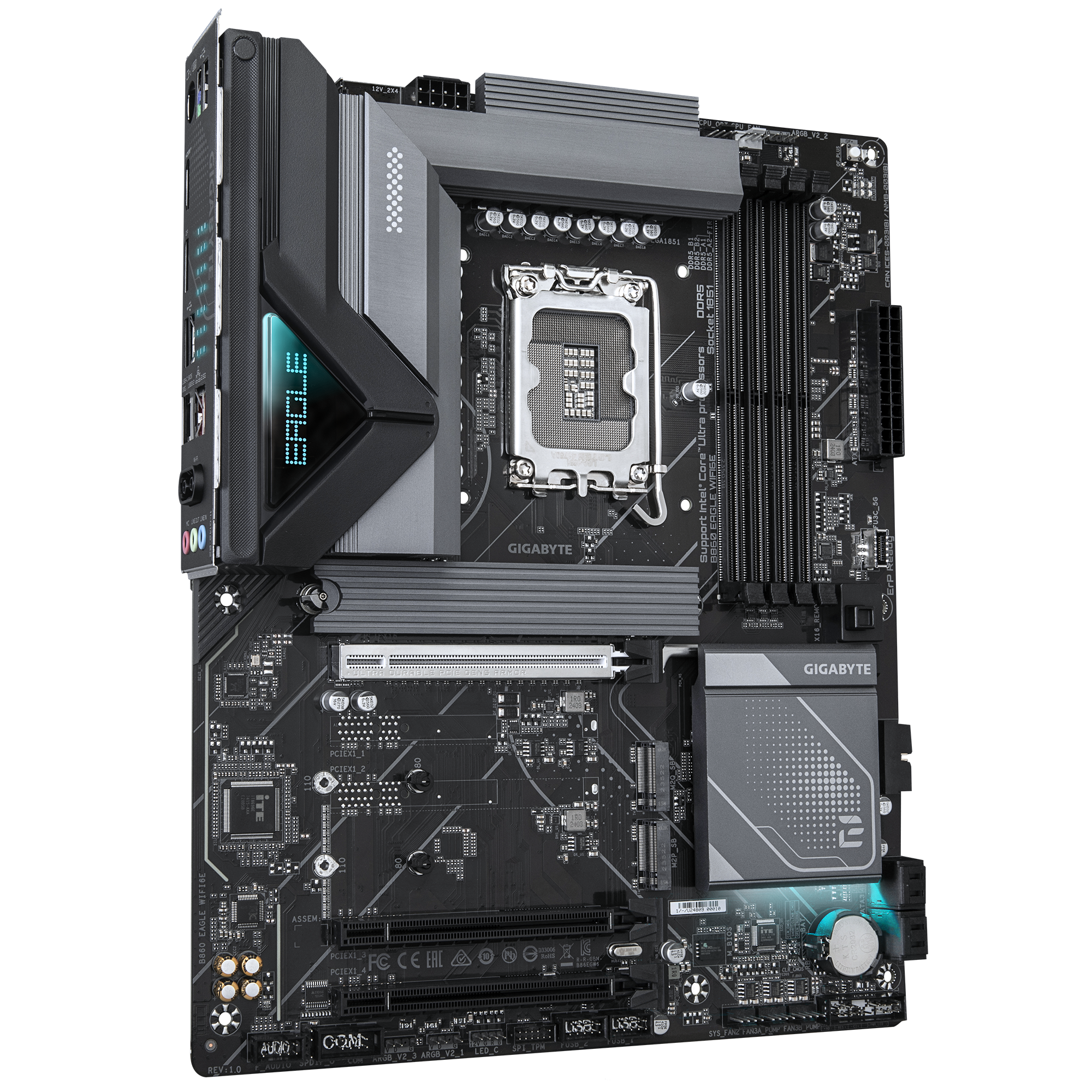

The Gigabyte B860 EAGLE WIFI6E is a high-performance ATX motherboard built for Intel Core Ultra Series 2 processors, offering the perfect balance of performance, stability, expandability, and modern connectivity. Designed around the Intel B860 chipset and LGA1851 socket, it provides an excellent foundation for gaming systems, content creation workstations, and productivity-focused desktop PCs.

With support for up to 256GB of DDR5 memory and speeds reaching DDR5-9066 (OC), the B860 EAGLE WIFI6E is ready for next-generation computing workloads. Advanced memory tuning technologies help deliver exceptional responsiveness, faster load times, and improved multitasking performance.

For graphics and storage expansion, the motherboard features a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot, and additional PCIe 4.0 M.2 slots, enabling support for the latest graphics cards and ultra-fast NVMe SSDs. Integrated thermal solutions help maintain stable operating temperatures during demanding workloads.

Connectivity is equally impressive, with integrated WiFi 6E, Bluetooth 5.3, and 2.5 Gigabit Ethernet, ensuring fast and reliable wired and wireless networking for gaming, streaming, content creation, and professional applications.

Designed with durability in mind, the motherboard incorporates Gigabyte Ultra Durable components, a robust 12+1+2 Digital VRM design, integrated I/O shield, RGB lighting support, and extensive cooling features to provide dependable performance for years to come.

Key Features

• Supports Intel Core Ultra Series 2 Processors
• Intel LGA1851 Socket
• Intel B860 Express Chipset
• ATX Form Factor
• 12+1+2 Digital VRM Power Design
• Support for up to 256GB DDR5 Memory
• DDR5 Memory Speeds up to 9066 MT/s (OC)
• 1 x PCIe 5.0 x16 Graphics Slot
• 1 x PCIe 5.0 M.2 Slot
• 2 x PCIe 4.0 M.2 Slots
• Integrated WiFi 6E
• Bluetooth 5.3 Connectivity
• 2.5 Gigabit Ethernet LAN
• HDMI 2.1 Output
• DisplayPort 2.1 Output
• Integrated I/O Shield
• RGB and Addressable RGB Headers
• M.2 Thermal Guard Cooling
• Gigabyte Ultra Durable Design

Specifications

Brand: Gigabyte

Model: B860 EAGLE WIFI6E

SKU: GA-B860-EAGLE-WIFI6E

CPU Socket: LGA1851

Chipset: Intel B860 Express

CPU Support: Intel Core Ultra Series 2 Processors

Form Factor: ATX

Memory Slots: 4 x DDR5 DIMM

Maximum Memory Capacity: 256GB

Memory Speed Support: Up to DDR5-9066 (OC)

Memory Architecture: Dual Channel

Expansion Slots: • 1 x PCIe 5.0 x16 • 2 x PCIe 4.0 x1

Storage: • 1 x PCIe 5.0 M.2 • 2 x PCIe 4.0 M.2

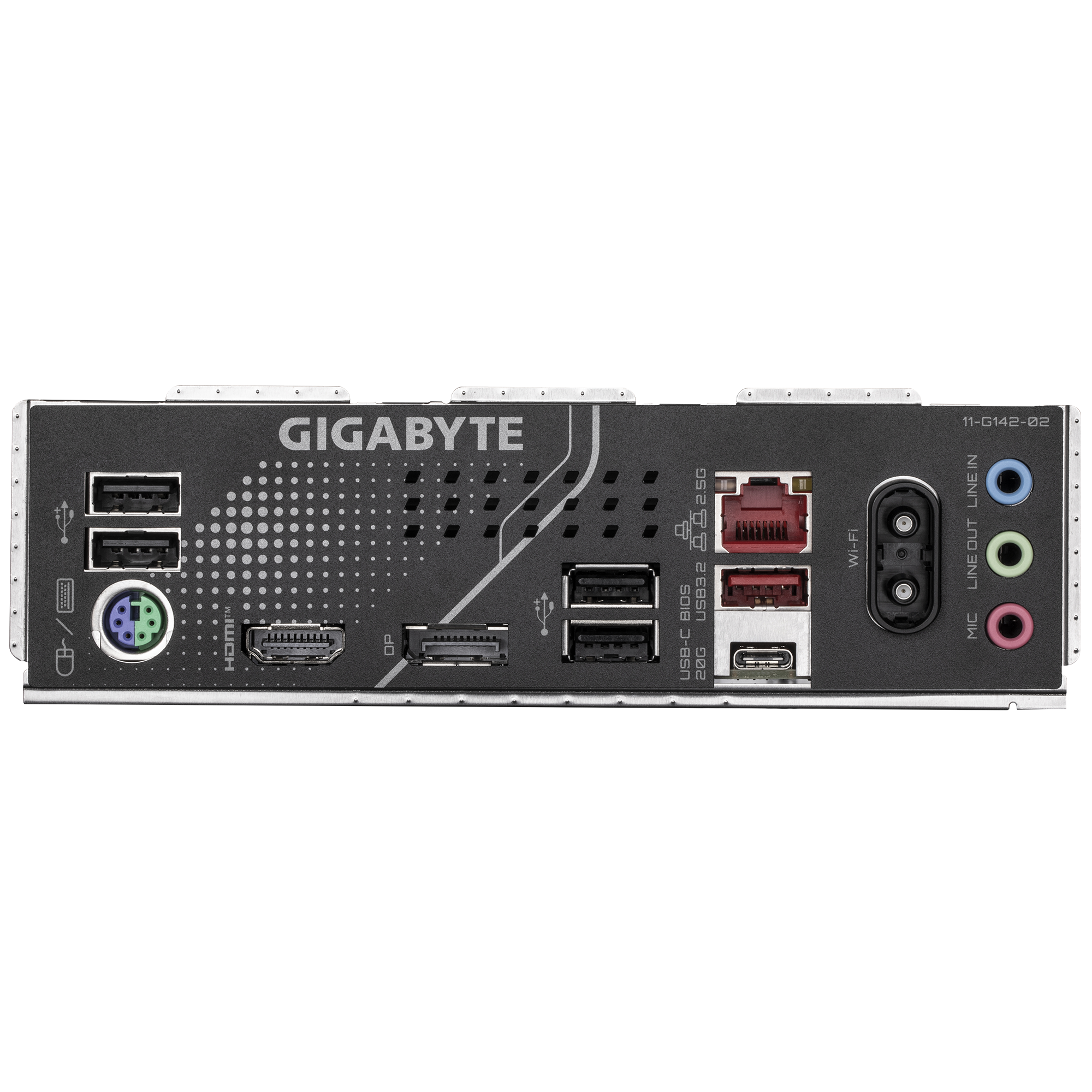

Networking: • WiFi 6E • Bluetooth 5.3 • 2.5 Gigabit Ethernet

Graphics Outputs: • 1 x HDMI 2.1 • 1 x DisplayPort 2.1

Audio: • High Definition Audio • 2 / 4 / 5.1 / 7.1 Channel Audio Support • Optical S/PDIF Output

Additional Features: • Integrated I/O Shield • Debug LEDs • RGB Header • Addressable RGB Headers • M.2 Thermal Guard • Ultra Durable Components
