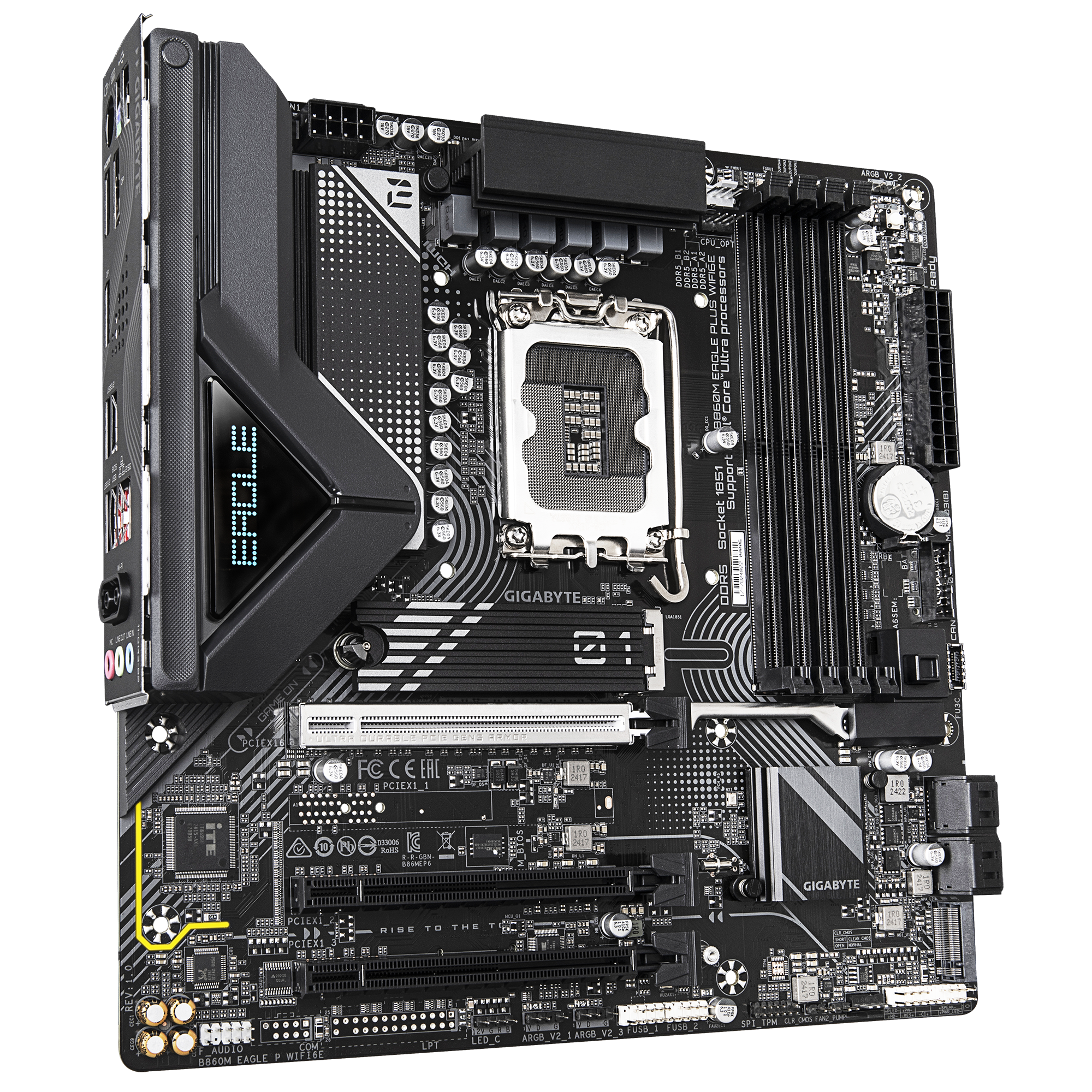

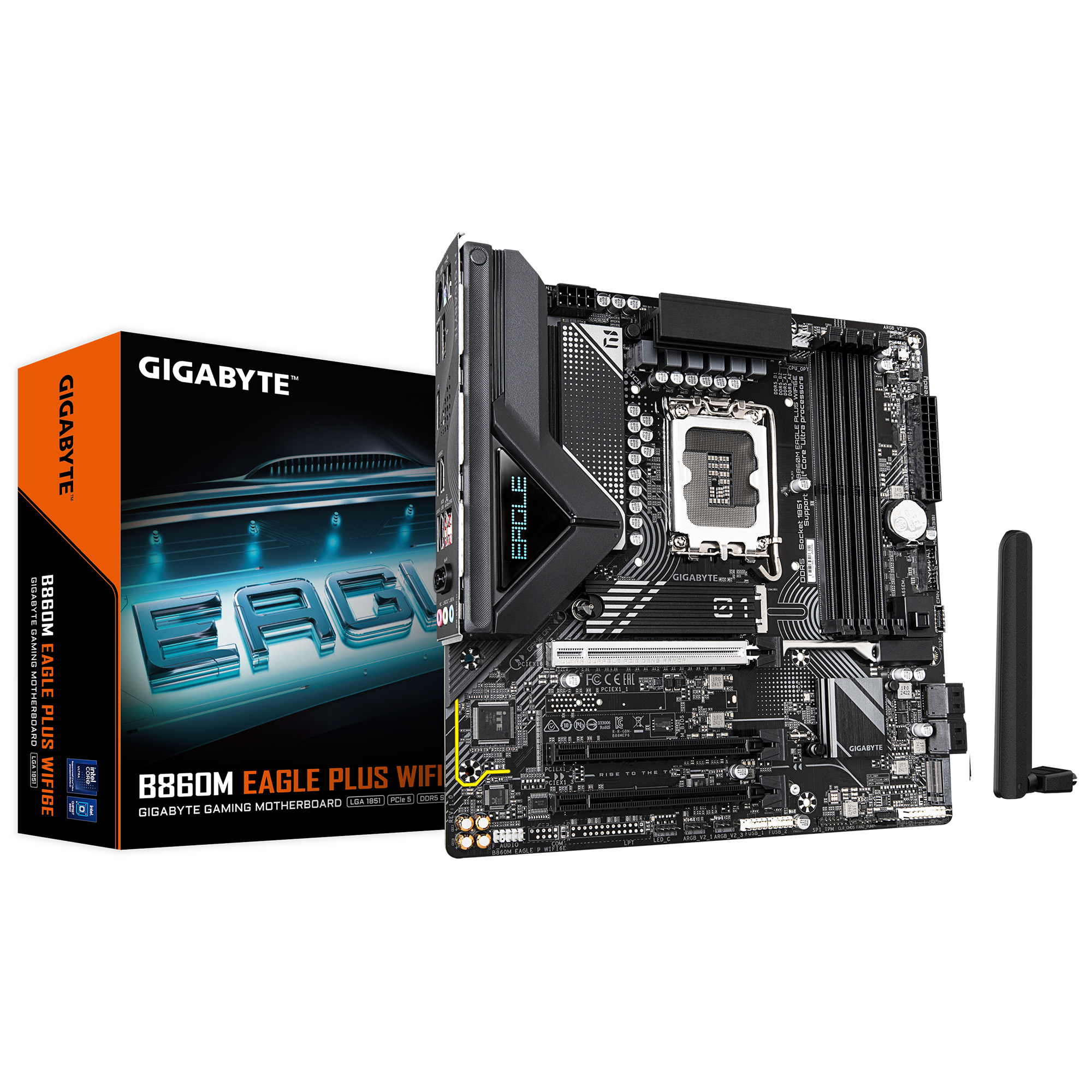

The Gigabyte B860M EAGLE PLUS WIFI6E is a feature-rich Micro-ATX motherboard designed for Intel Core Ultra Series 2 processors. Built on the Intel B860 chipset and LGA1851 platform, it offers a balance of performance, connectivity, and reliability for gaming, productivity, content creation, and professional desktop PC builds.

Supporting up to 256GB of DDR5 memory across four DIMM slots, the B860M EAGLE PLUS WIFI6E provides excellent system responsiveness and multitasking performance. With support for DDR5 memory speeds up to 9066 MT/s (OC), users can maximize memory bandwidth and unlock the full potential of modern DDR5 memory kits.

Designed for next-generation expansion, the motherboard features a PCIe 5.0 x16 slot for modern graphics cards, a PCIe 5.0 M.2 slot, and an additional PCIe 4.0 M.2 slot for ultra-fast NVMe SSD storage. Gigabyte’s M.2 Thermal Guard helps maintain optimal storage temperatures during demanding workloads.

Networking capabilities include integrated WiFi 6E, Bluetooth 5.3, and Realtek 2.5 Gigabit Ethernet, delivering fast and reliable wired and wireless connectivity for gaming, streaming, downloads, and business applications.

Additional features include an integrated I/O shield, debug LEDs, RGB lighting support, addressable RGB headers, premium power delivery, and Gigabyte Ultra Durable components designed for long-term reliability and system stability.

Key Features

• Supports Intel Core Ultra Series 2 Processors
• Intel LGA1851 Socket
• Intel B860 Express Chipset
• Micro-ATX Form Factor
• Supports up to 256GB DDR5 Memory
• DDR5 Memory Speeds up to 9066 MT/s (OC)
• 8+1+2 Digital VRM Design
• 1 x PCIe 5.0 x16 Graphics Slot
• 1 x PCIe 5.0 M.2 Slot
• 1 x PCIe 4.0 M.2 Slot
• Integrated WiFi 6E
• Bluetooth 5.3 Support
• Realtek 2.5GbE LAN
• HDMI 2.1 Output
• 2 x DisplayPort Outputs
• Integrated I/O Shield
• Debug LEDs
• RGB and Addressable RGB Support
• M.2 Thermal Guard Cooling
• Gigabyte Ultra Durable Design

Specifications

Brand: Gigabyte

Model: B860M EAGLE PLUS WIFI6E

SKU: GA-B860M-EAGLE-P-WIFI6E

CPU Socket: LGA1851

Chipset: Intel B860 Express

CPU Support: Intel Core Ultra Series 2 Processors

Form Factor: Micro-ATX

Memory Slots: 4 x DDR5 DIMM

Maximum Memory Capacity: 256GB

Memory Speed Support: Up to DDR5-9066 (OC)

Memory Architecture: Dual Channel

Expansion Slots: • 1 x PCIe 5.0 x16
• 2 x PCIe 4.0 x1

Storage: • 1 x PCIe 5.0 M.2
• 1 x PCIe 4.0 M.2

Networking: • WiFi 6E
• Bluetooth 5.3
• Realtek 2.5GbE LAN

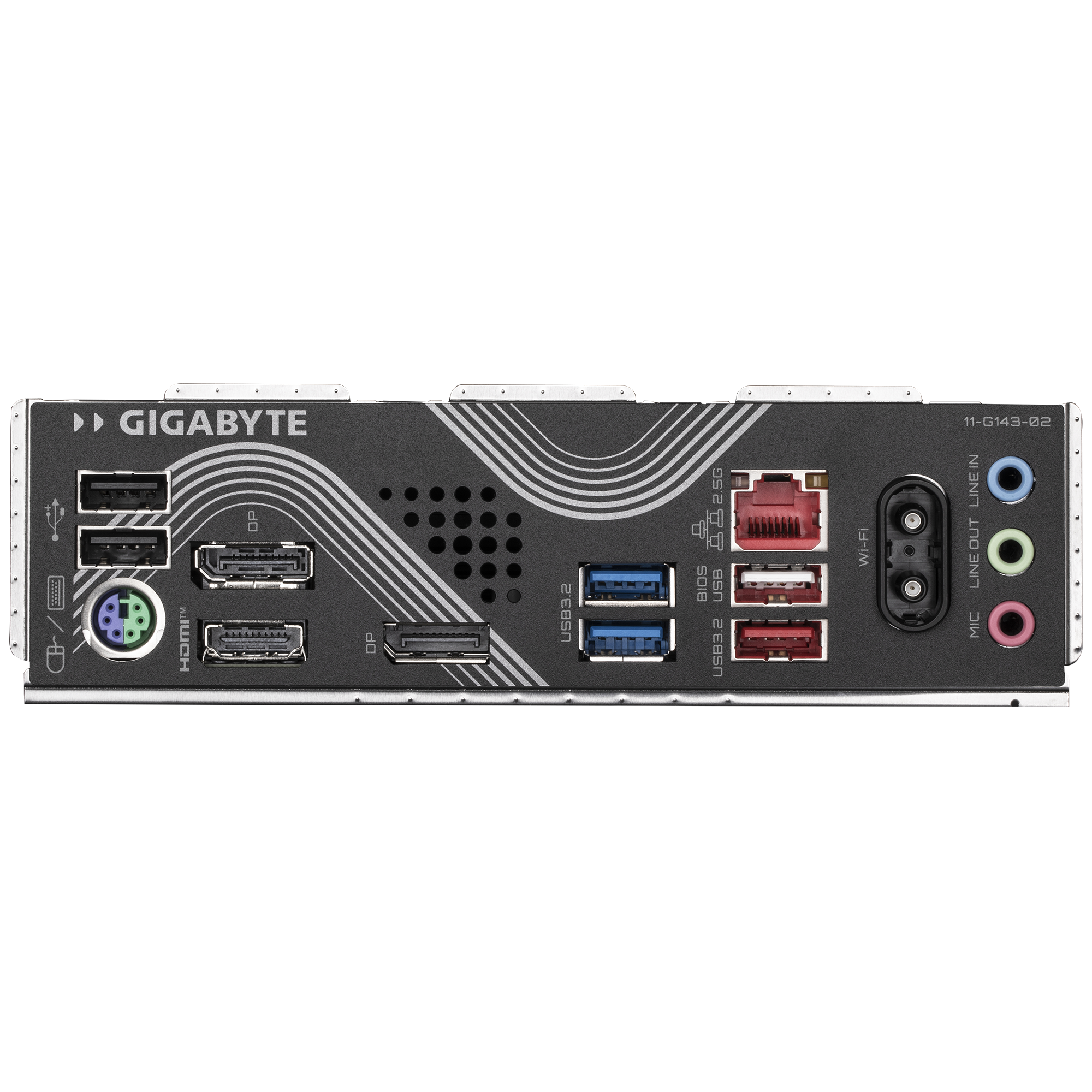

Graphics Outputs: • 1 x HDMI 2.1
• 2 x DisplayPort

Audio: • High Definition Audio
• 2 / 4 / 5.1 / 7.1 Channel Audio Support

Additional Features: • Integrated I/O Shield
• Debug LEDs
• RGB Header
• Addressable RGB Headers
• M.2 Thermal Guard
• Ultra Durable Components
