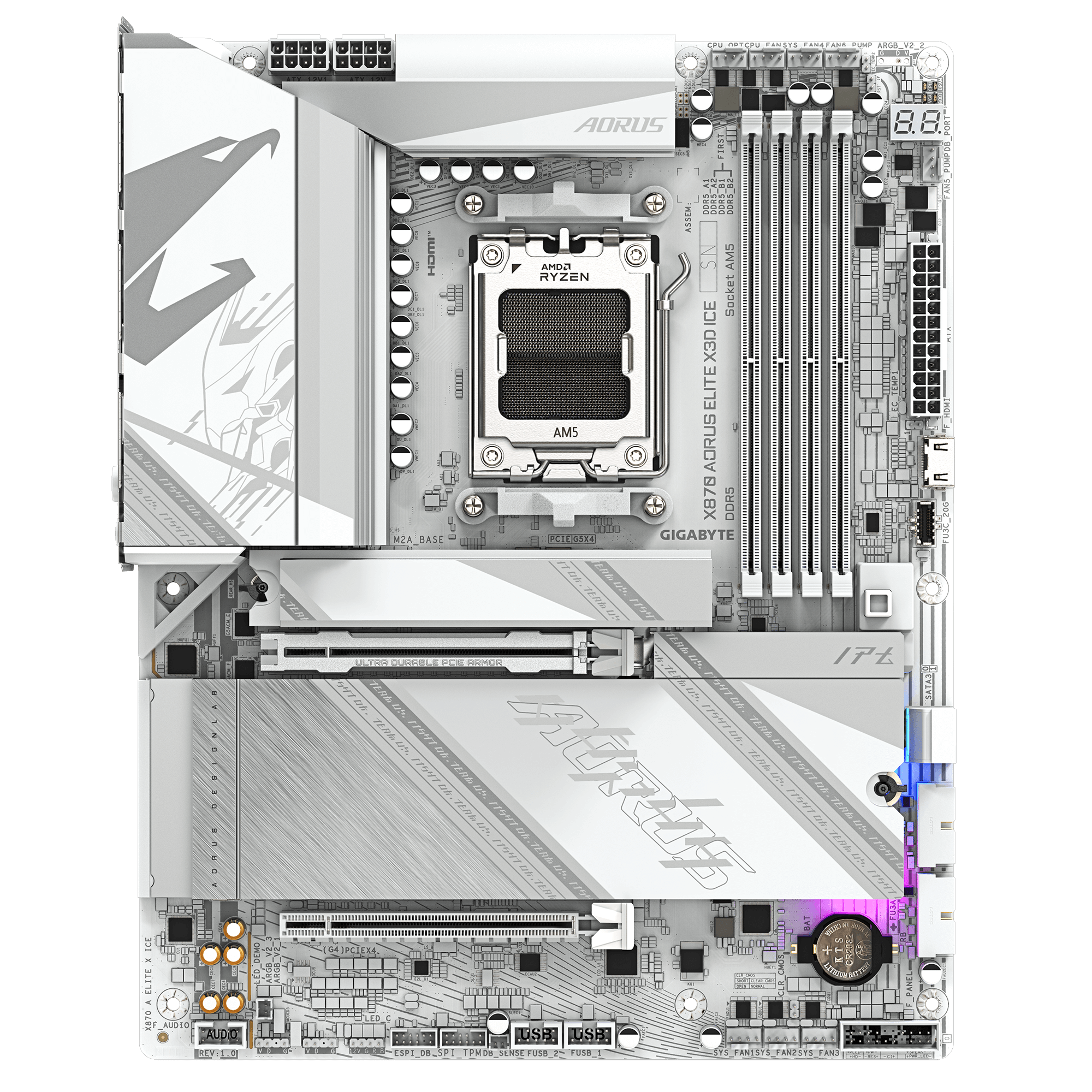

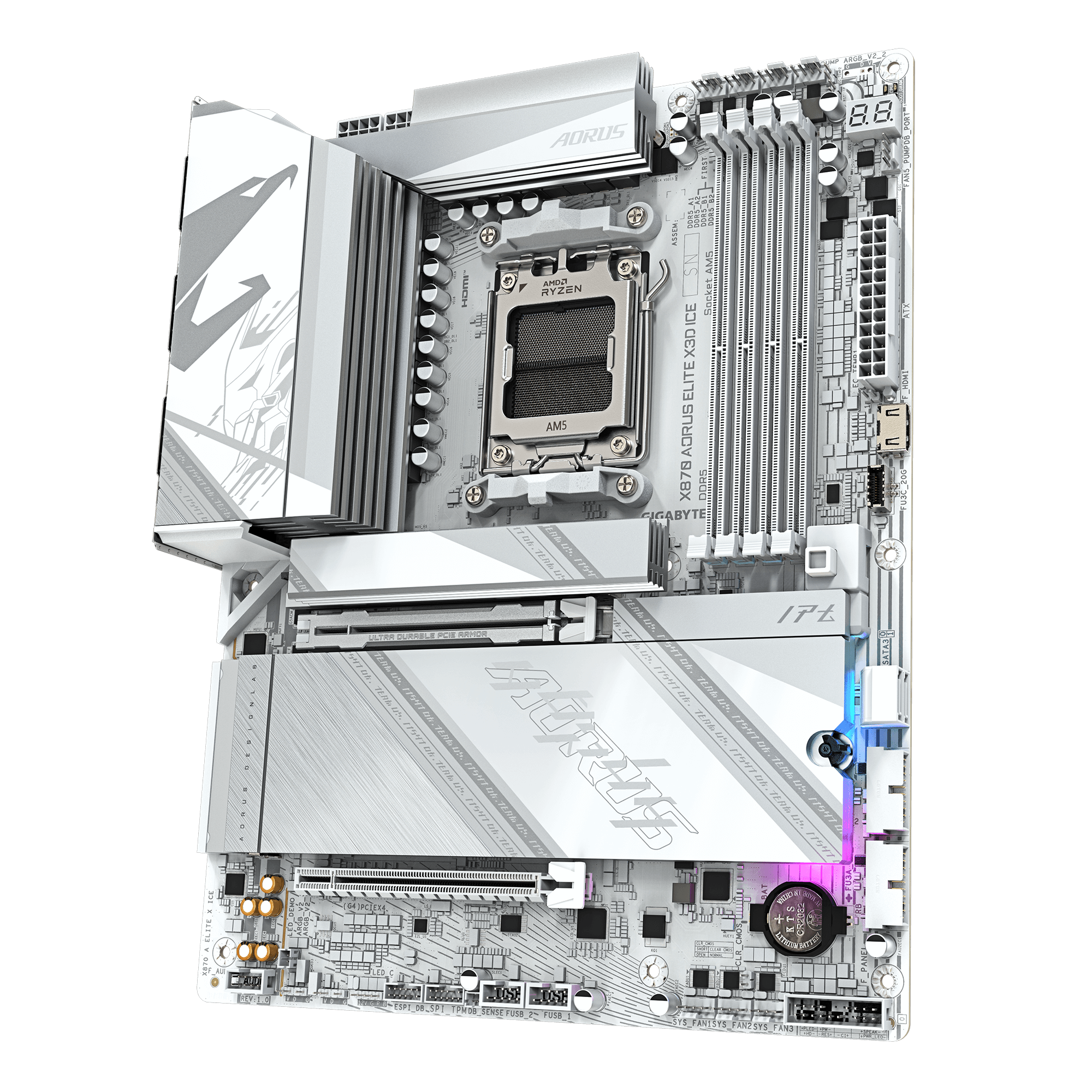

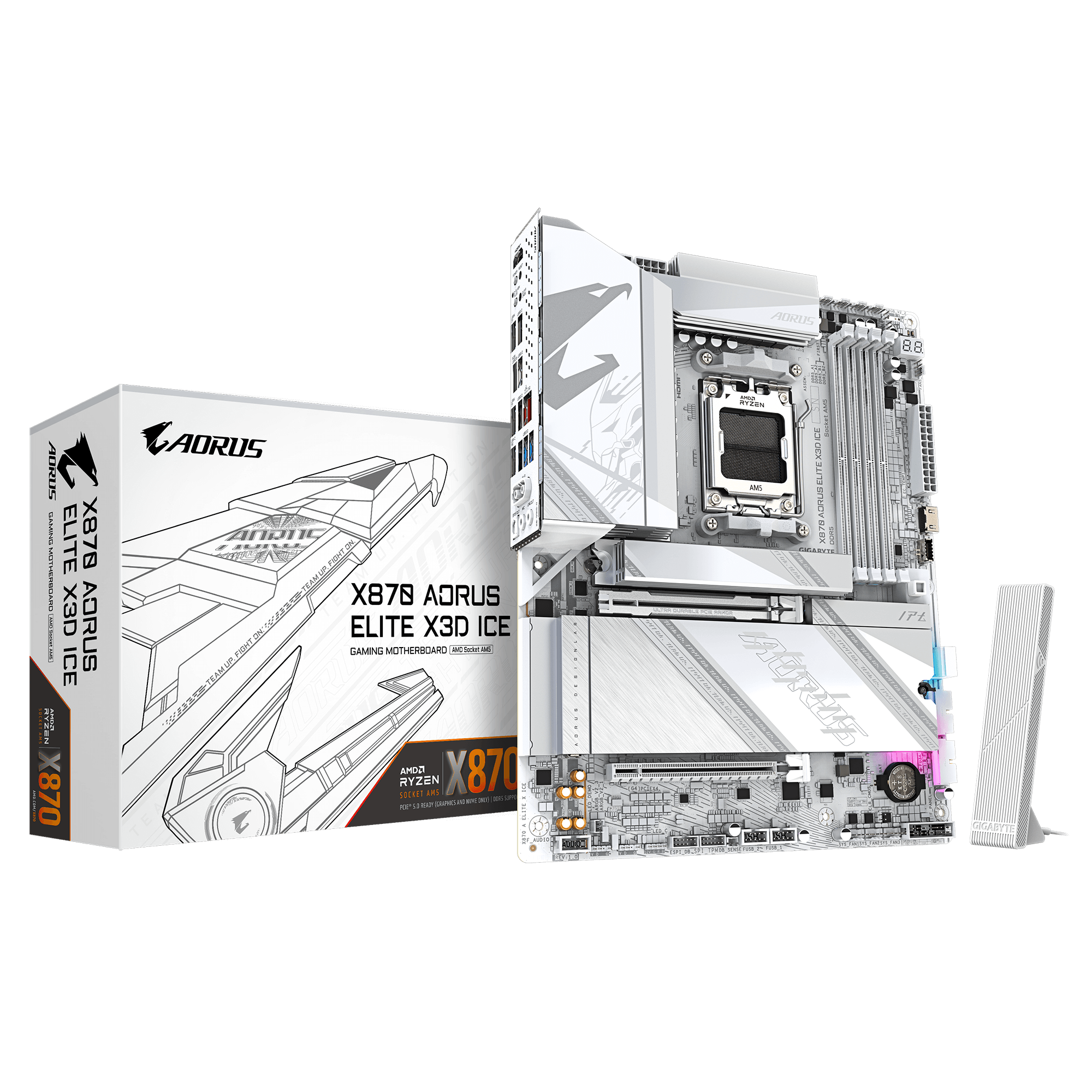

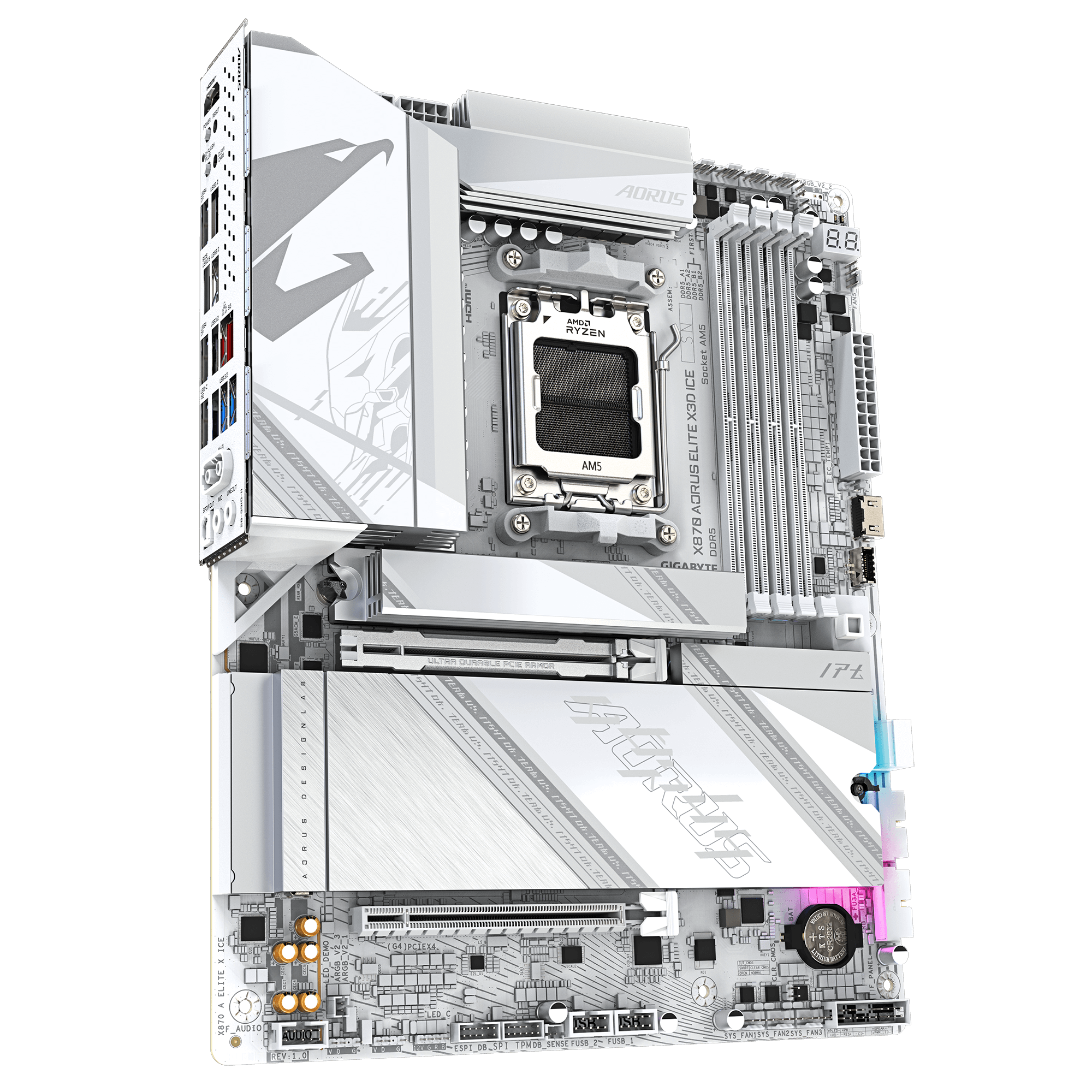

Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 ATX Motherboard (GA‑X870‑AORUS‑ELITE‑X3D‑ICE)

The Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 ATX motherboard is engineered for enthusiasts and gamers who demand cutting‑edge performance, advanced connectivity, and premium durability. Built on the AMD X870 chipset, it supports AMD’s latest AM5 socket processors, including Ryzen X3D models optimized for gaming. With DDR5 memory support, PCIe 5.0 expansion, and next‑generation storage, this board delivers uncompromising speed and responsiveness. Integrated Wi‑Fi 7, 2.5GbE LAN, and Gigabyte’s Ultra Durable ICE engineering ensure stability, efficiency, and long‑term reliability.

As part of the AORUS ELITE ICE series, the X870 combines high‑end cooling, reinforced design, and sleek ICE aesthetics, making it an excellent choice for builders who want both performance and style.

🌟 Key Features

• AMD AM5 Socket Support (Ryzen 7000 Series CPUs, including X3D models)
• Full‑size ATX Form Factor for expanded builds
• 4× DDR5 DIMM Slots with up to 256GB support
• PCIe 5.0 x16 Expansion Slot for next‑gen GPUs
• Additional PCIe 4.0 slots for expansion cards
• Quad M.2 NVMe PCIe 5.0/4.0 Storage Support
• 4× SATA 6Gb/s Ports for traditional drives
• USB 3.2 Gen2x2 Type‑C + multiple USB 3.2 Gen2/Gen1/USB 2.0 ports
• HDMI 2.1 and DisplayPort 1.4 Outputs
• Integrated Wi‑Fi 7 + 2.5GbE LAN Networking
• Smart Fan 6 Cooling Technology
• Reinforced PCIe Slot + Ultra Durable ICE Design
• Premium AORUS ELITE ICE Series Reliability

🔧 Technical Specifications

• CPU Support: AMD AM5 socket (Ryzen 7000 Series CPUs, optimized for X3D gaming processors)
• Chipset: AMD X870
• Form Factor: ATX (305 × 244 mm)
• Memory:
  • 4× DDR5 DIMM slots, dual channel
  • Up to 256GB capacity
  • Support for high‑speed DDR5 modules with XMP profiles
• Expansion Slots:
  • 1× PCIe 5.0 x16 slot (graphics card)
  • 2× PCIe 4.0 x16 slots (wired as x4)
  • 1× PCIe 4.0 x1 slot
• Storage:
  • 2× M.2 PCIe 5.0 NVMe SSD slots
  • 2× M.2 PCIe 4.0 NVMe SSD slots
  • 4× SATA 6Gb/s ports
  • RAID 0/1/5/10 support
• Graphics Outputs:
  • 1× HDMI 2.1
  • 1× DisplayPort 1.4
• USB Connectivity:

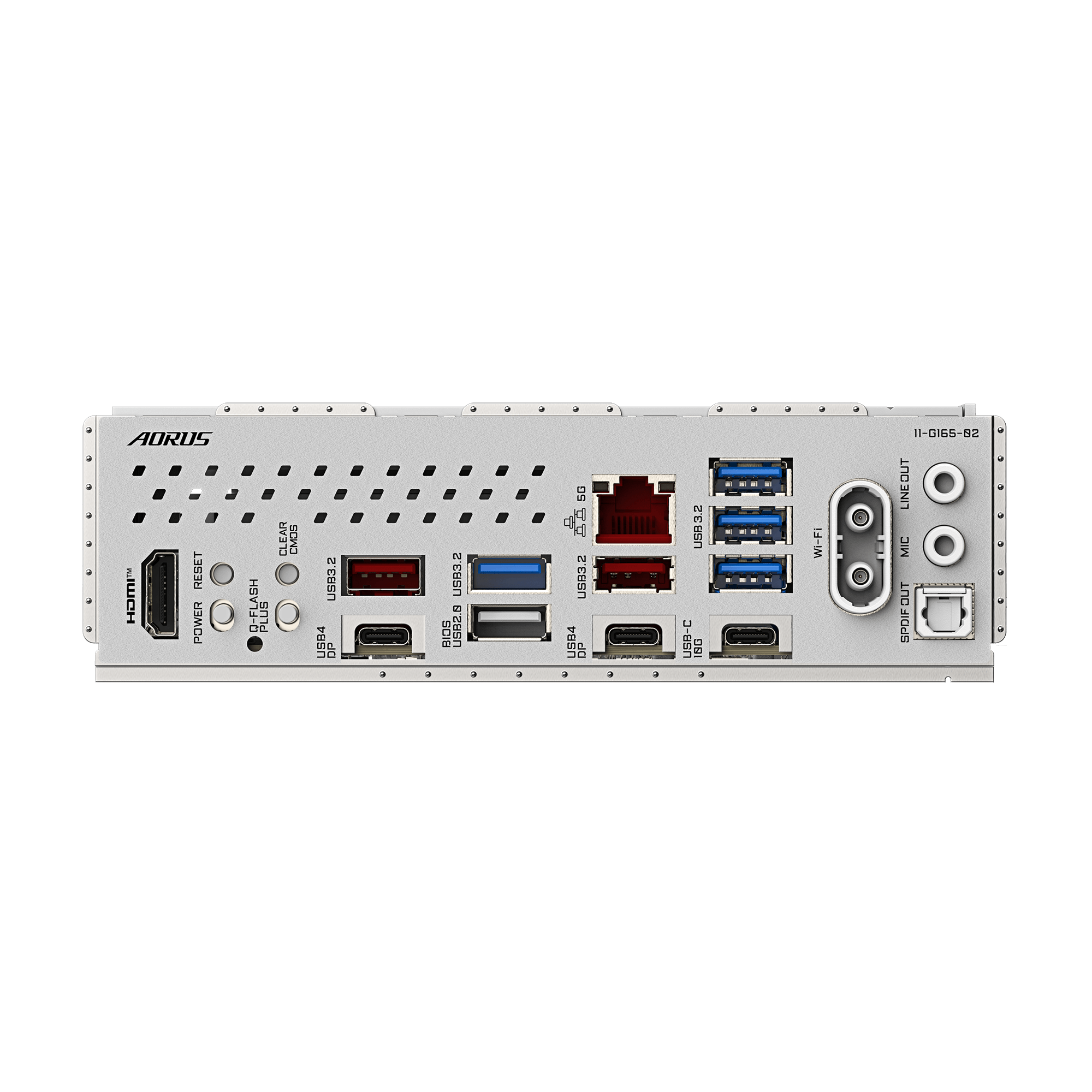

  • Rear I/O: 1× USB 3.2 Gen2x2 Type‑C, 2× USB 3.2 Gen2 Type‑A, 4× USB 3.2 Gen1 Type‑A, 4× USB 2.0
  • Internal headers: USB 3.2 Gen2 Type‑C, USB 3.2 Gen1, USB 2.0
• Networking:
  • Integrated Wi‑Fi 7 (802.11be)
  • 2.5GbE LAN (Realtek controller)
• Audio: Realtek HD Audio codec, support for 7.1‑channel output
• Cooling & Design:
  • Smart Fan 6 with hybrid fan headers
  • Reinforced PCIe slot for heavy GPUs
  • Ultra Durable ICE components with solid capacitors
  • Integrated I/O shield for easier installation
• Power Connectors: 24‑pin ATX main power, dual 8‑pin CPU connectors
• Dimensions: ATX standard (305 × 244 mm)

The Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 ATX (GA‑X870‑AORUS‑ELITE‑X3D‑ICE) delivers next‑generation AMD performance, modern connectivity, and durable ICE engineering, making it an excellent choice for builders seeking a powerful ATX motherboard solution optimized for Ryzen X3D gaming processors.
