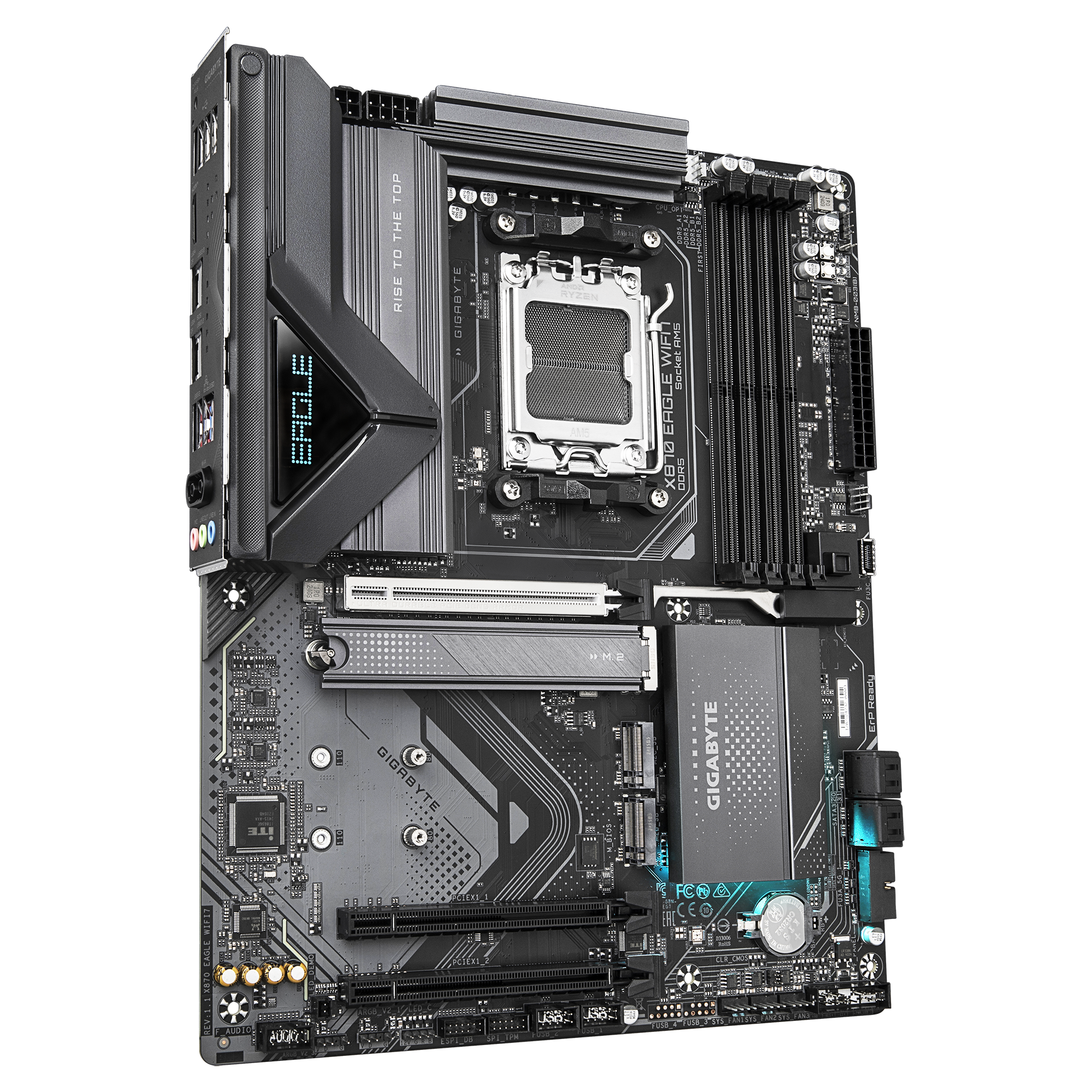

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard (GA‑X870‑EAGLE‑WIFI7)

The Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX motherboard is designed for builders who want reliable performance, modern connectivity, and next‑generation features in a full‑size ATX form factor. Supporting AMD’s latest AM5 socket processors, it delivers compatibility with DDR5 memory, PCIe 5.0 expansion, and ultra‑fast storage. With integrated Wi‑Fi 7, 2.5GbE LAN, and Gigabyte’s Ultra Durable engineering, this board ensures stability, efficiency, and long‑term durability for gaming, productivity, and everyday computing.

As part of the EAGLE series, the X870 offers essential features with a clean, modern aesthetic, making it an excellent choice for budget‑conscious builders who still want access to premium technologies.

🌟 Key Features

• AMD AM5 Socket Support (Ryzen 7000 Series CPUs)
• Full‑size ATX Form Factor for expanded builds
• 4× DDR5 DIMM Slots with up to 256GB support
• PCIe 5.0 x16 Expansion Slot for next‑gen GPUs
• Additional PCIe 4.0 slots for expansion cards
• Quad M.2 NVMe PCIe 5.0/4.0 Storage Support
• 4× SATA 6Gb/s Ports for traditional drives
• USB 3.2 Gen2x2 Type‑C + multiple USB 3.2 Gen2/Gen1/USB 2.0 ports
• HDMI 2.1 and DisplayPort 1.4 Outputs
• Integrated Wi‑Fi 7 + 2.5GbE LAN Networking
• Smart Fan 6 Cooling Technology
• Reinforced PCIe Slot + Ultra Durable EAGLE Design
• Affordable EAGLE Series Reliability

🔧 Technical Specifications

• CPU Support: AMD AM5 socket (Ryzen 7000 Series CPUs)
• Chipset: AMD X870
• Form Factor: ATX (305 × 244 mm)
• Memory:
  • 4× DDR5 DIMM slots, dual channel
  • Up to 256GB capacity
  • Support for high‑speed DDR5 modules with XMP profiles
• Expansion Slots:
  • 1× PCIe 5.0 x16 slot (graphics card)
  • 2× PCIe 4.0 x16 slots (wired as x4)
  • 1× PCIe 4.0 x1 slot
• Storage:
  • 2× M.2 PCIe 5.0 NVMe SSD slots
  • 2× M.2 PCIe 4.0 NVMe SSD slots
  • 4× SATA 6Gb/s ports
  • RAID 0/1/5/10 support
• Graphics Outputs:
  • 1× HDMI 2.1
  • 1× DisplayPort 1.4

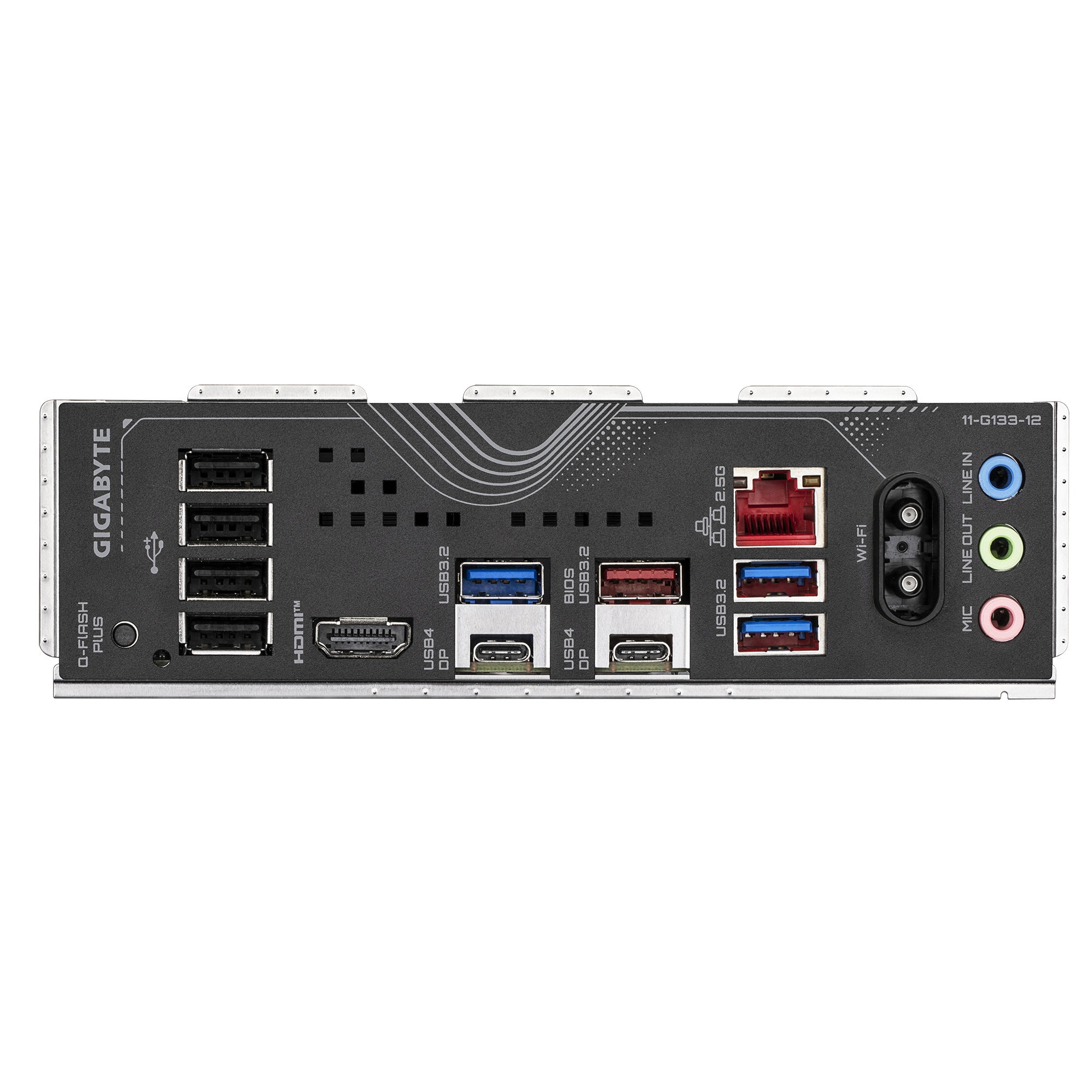

• USB Connectivity:
  • Rear I/O: 1× USB 3.2 Gen2x2 Type‑C, 2× USB 3.2 Gen2 Type‑A, 4× USB 3.2 Gen1 Type‑A, 4× USB 2.0
  • Internal headers: USB 3.2 Gen2 Type‑C, USB 3.2 Gen1, USB 2.0
• Networking:
  • Integrated Wi‑Fi 7 (802.11be)
  • 2.5GbE LAN (Realtek controller)
• Audio: Realtek HD Audio codec, support for 7.1‑channel output
• Cooling & Design:
  • Smart Fan 6 with hybrid fan headers
  • Reinforced PCIe slot for heavy GPUs
  • Ultra Durable components with solid capacitors
  • Integrated I/O shield for easier installation
• Power Connectors: 24‑pin ATX main power, dual 8‑pin CPU connectors
• Dimensions: ATX standard (305 × 244 mm)

The Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX (GA‑X870‑EAGLE‑WIFI7) delivers modern connectivity, integrated Wi‑Fi 7, and durable engineering, making it an excellent choice for builders seeking a full‑size AM5 motherboard solution with reliable performance and essential features.
