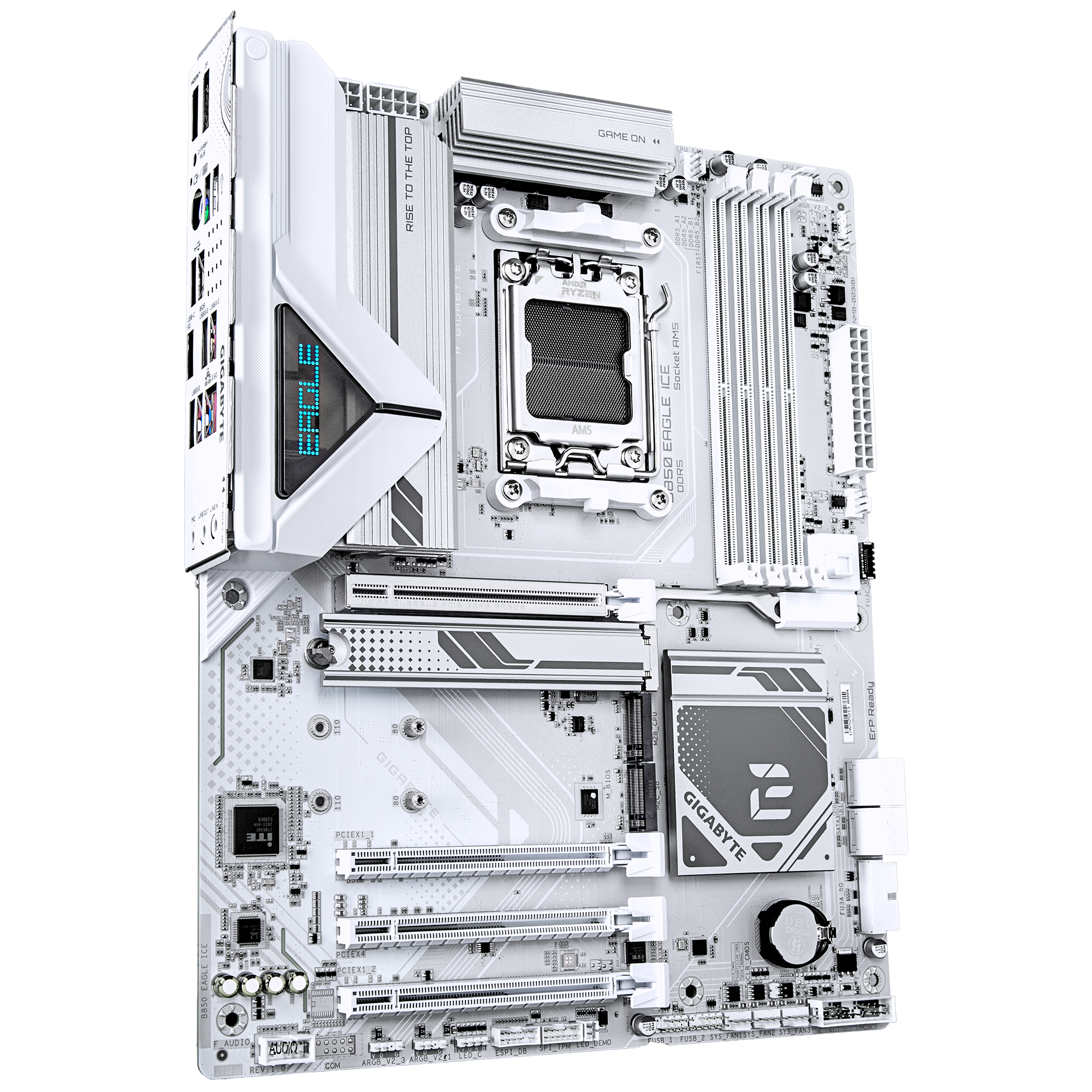

Gigabyte B850 EAGLE ICE AMD AM5 ATX Motherboard (GA‑B850‑EAGLE ICE)

The Gigabyte B850 EAGLE ICE AMD AM5 ATX motherboard is designed for builders who want a balance of affordability, reliability, and next‑generation performance in a full‑size ATX form factor. Supporting AMD’s latest AM5 socket processors, it delivers compatibility with DDR5 memory, PCIe 5.0 expansion, and high‑speed connectivity. With Gigabyte’s Ultra Durable engineering and ICE series design, this board ensures stable operation, efficient cooling, and long‑term durability for gaming, productivity, and everyday computing.

As part of the EAGLE ICE series, the B850 offers essential modern features with a clean aesthetic, making it an excellent choice for budget‑conscious builders who still want access to next‑gen technologies.

🌟 Key Features

• AMD AM5 Socket Support (Ryzen 7000 Series CPUs)
• Full‑size ATX Form Factor for expanded builds
• Dual DDR5 DIMM Slots with up to 128GB support
• PCIe 5.0 x16 Expansion Slot for next‑gen GPUs
• Additional PCIe 4.0 slots for expansion cards
• Dual M.2 NVMe PCIe 4.0 Storage Support
• 4× SATA 6Gb/s Ports for traditional drives
• USB 3.2 Gen2 Type‑C + multiple USB 3.2 Gen1/USB 2.0 ports
• HDMI 2.1 and DisplayPort 1.4 Outputs
• Gigabit LAN Networking
• Smart Fan 6 Cooling Technology
• Reinforced PCIe Slot + Ultra Durable ICE Design
• Affordable EAGLE ICE Series Reliability

🔧 Technical Specifications

• CPU Support: AMD AM5 socket (Ryzen 7000 Series CPUs)
• Form Factor: ATX (305 × 244 mm)
• Memory: 2× DDR5 DIMM slots, dual‑channel architecture, up to 128GB, support for high‑speed DDR5 modules with XMP profiles
• Expansion Slots:
  • 1× PCIe 5.0 x16 slot (graphics card)
  • 1× PCIe 4.0 x16 slot (wired as x4)
  • 2× PCIe 4.0 x1 slots
• Storage:
  • 2× M.2 slots (PCIe 4.0 NVMe SSD support)
  • 4× SATA 6Gb/s ports
• Graphics Outputs:
  • 1× HDMI 2.1
  • 1× DisplayPort 1.4
• USB Connectivity:
  • Rear I/O: 1× USB 3.2 Gen2 Type‑C, 2× USB 3.2 Gen1 Type‑A, 4× USB 2.0
  • Internal headers: USB 3.2 Gen1, USB 2.0
• Networking: Gigabit LAN (Realtek controller)
• Audio: High‑definition audio with Realtek codec, support for 7.1‑channel output
• Cooling & Design:
  • Hybrid fan headers with Smart Fan 6 technology
  • Reinforced PCIe slot for heavy GPUs
  • Ultra Durable components with solid capacitors
  • Integrated I/O shield for easier installation
• Power Connectors: 24‑pin ATX main power, 8‑pin CPU power
• Dimensions: ATX standard (305 × 244 mm)

The Gigabyte B850 EAGLE ICE AMD AM5 ATX (GA‑B850‑EAGLE ICE) delivers essential features, modern connectivity, and durable engineering, making it an excellent choice for builders seeking a reliable and cost‑effective AM5 motherboard solution with a stylish ICE design.
